MEET URAL GEO
Each year we come out with limited edition series, often built with quirky bits inspired by nuclear icebreakers, international space stations, drone carriers or even Bond-themed vehicles. This year’s limited edition is built out with our team’s carefully selected off-roading upgrades available in one complete package to encourage any serious dual-sport adventurers for the most challenging terrains. Not to mention the ultra unique, hand painted, extremely limited and super daring geometrical camo paint scheme. Introducing Ural Gear Up GEO.
Total Built: 20 Units Worldwide
ALWAYS MOVE FORWARD
Ural is about getting out there and finding a way where others see obstacles.
It takes boldness and perseverance to pursue that. That’s the idea behind this limited edition.
PROVEN PLATFORM + SELECT UPGRADES
GEO LE is built on the proven Gear Up platform: low center of gravity boxer engine, second generation EFI system, on demand 2WD, Brembo Disc brakes, upgraded adjustable Nitron suspension, optional high pipe GPR exhaust system (for off-road use only), Heidenau tires, extensive protection and luggage rack systems, lightweight low profile RotopaX fuel container, as well as MRA rider fairing, handguards, handlebar clamp RAM ball mount and dual outlet USB power charger to install and safely connect the navigation device of your choice. It’s the ultimate off-road combo ever, not to mention the paint!
GEO CAMO DRAMA
Four color geometric camo pattern idea was an inspiration, turned ambition, turned a tall ask, turned “factory will do it”… You see, the method involves layering coats of paint to achieve the tricky color block pattern. And because each is done one at a time by hand, every bike is one of one. So if you wonder why only twenty, the answer is simple: Svetlana from the paint department said… “No More!”
SPECIAL FEATURES

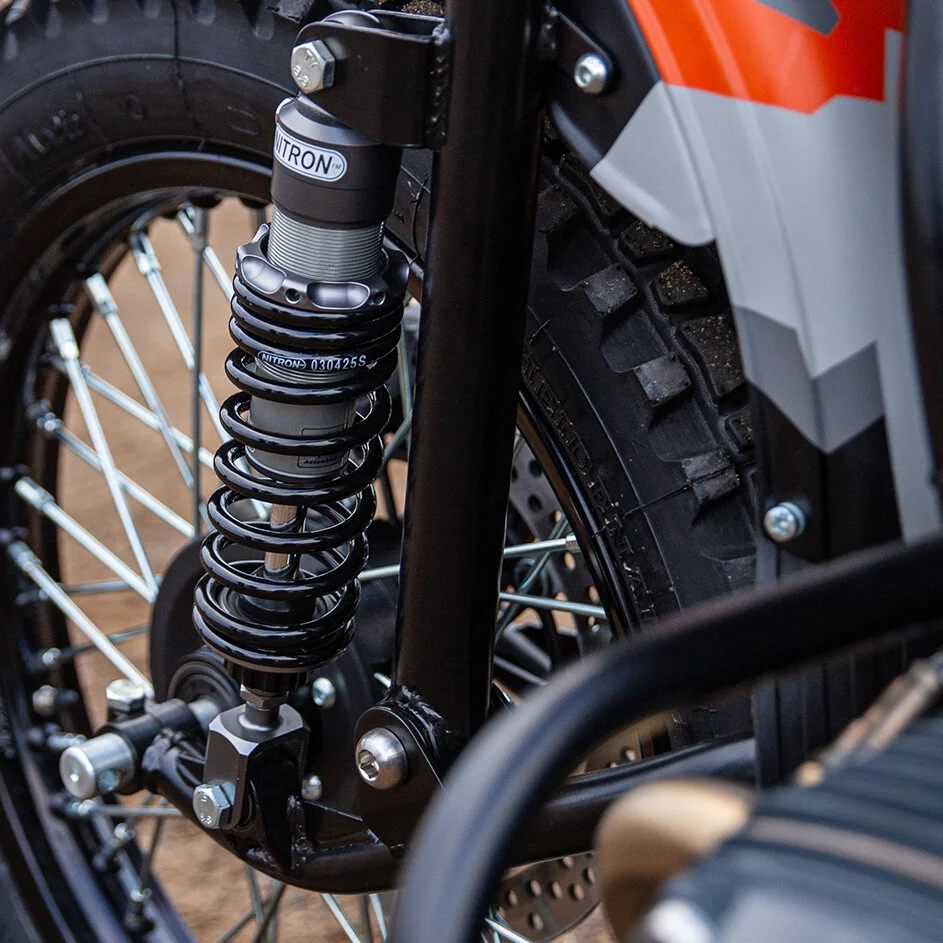

Nitron Shocks
For 20 years Nitron has celebrated prestigious race wins and lap records around the world with their high-performance shocks for automobile, motorcycle and sidecar racing. Designed, developed and manufactured in the UK, Nitron’s worldwide headquarters are based in England’s prestigious ‘Motorsport Valley’, Oxfordshire.
Nitron Shocks offer exceptional performance. High grade materials and a durable titanium finish to protect against corrosion in a light weight package.
Nitrogen gas charged
Preload adjustable
Combined 2-way, 24 position rebound and compression adjustment
Fully hard anodized alloy body
40mm Piston design with 14mm piston rod
Unstoppable Traction
Conquer the mud with our most popular off-road tire, the Heidenau K37. The wide-spaced chunky blocks eat through loose dirt and mud.
GPR
Ural Gear Up GEO comes with additional 2 into 1 GPR High Pipe Exhaust. For off road use only, dealer installed.
Spare Wheel Cargo Rack
The newly designed Spare Wheel Cargo Rack eliminates the trunk mounted hinges of the past and features large diameter tubing for a bold look that corresponds with other URAL accessories like the sidecar nose rack and light guards. Locating pins prevent rotation and should the need arise the entire rack and spare tire are mounted or removed with a single tool.
RotopaX
Low profile and light weight 1.5 gallon RotoPax fuel container: our staff’s favorite pick.
Install Your Navigation
Handlebar top clamp RAM mount is strong and stable, designed to accommodate most one-inch ball mount accessories. Perfect for securing GPS, phone or camera.
Dual outlet USB power charger with high quality silicone cap and magnetic switch that prevents motorcycle battery drain when the cap is closed.
Protection and Racks
MRA Ural rider fairing, handguards and luggage racks are practical bits for both short and long haul rides. Extra piping is added in strategic locations to protect components like lights and fenders. All done and coordinated in accent color throughout this unique build to compliment the GEO paint scheme.
URAL GEO FEATURES
On-Demand 2WD
GEO Camo Paint Scheme + Orange Accents Trim
Black Powertrain
Standard Enduro Seat
Heidenau Tires
Nitron Shocks
GPR 2-in-1 Highpipe for Off-Road Use Only
MRA Rider Windshield
Handlebar Clamp RAM ball mount
Dual Outlet USB Power Charger
H4 LED Bulb
Headlight Grill
Sidecar & Taillight Protection
Sidecar Nose Rack
Rear Sidecar Bumper
GEO Sparewheel Luggage Rack
Skid Plate
Ural Handguards
RotopaX Fuel Container + Mounts
12 V Adapter
Retroreflective GEO Logo for Sidecar & Gas Tank
TECH SPECS
Engine and Transmission
Displacement, cc: 749
Engine type: OHV air cooled 2 cylinder 4 stroke “boxer” (flat twin)
Valve per cylinder: 2
Bore and stroke (mm x mm): 78 x 78
Max output (hp): 41 @ 5500 rpm
Max torque (ft-lbs): 42 @ 4300 rpm
Compression: 8.6:1
Fuel system: Throttle body EFI
Starting: Electric & Kickstart
Clutch Double-disc dry
Transmission type: Manual
Speeds: 4 forward 1 reverse
Primary drive (rear wheel): Driveshaft
Final drive ratio: 4.62
Engageable sidecar wheel drive: Yes, driveshaft
Physical Measurements
Overall length, inch.: 98.8
Overall heights, inch.: 54.3
Overall width, inch.: 63.6
Seat height, (unladen), inch.: 32.0
Ground clearance (unladen),inch.: 6.8
Dry weight, lbs: 730
Electrical
Alternator: Denso, Peak Output 40 Amp @ 14vdc, 560 Wt
Battery: FAYTX20HL (12V, 20A)
Headlight: H4
Spark plugs: NGK BPR6HS
Chassis
Front suspension: IMZ leading link fork
Rear suspension: Double sided swing-arm with two hydraulic spring shock absorbers, 7x adjustable
Sidecar suspension: Single sided swing-arm with hydraulic spring shock absorber, 7x adjustable
Wheels: 2.15X19 Aluminum rims with steel spokes
Tires: 4.0×19″
Front brake: 4-piston fixed Brembo caliper with 295mm floating NG rotor
Rear brake: HB big bore single piston integrated floating caliper with 256mm fixed NG rotor
Sidecar brake: 2-piston fixed Brembo caliper with 245mm floating NG rotor
Misc.
Fuel grade: 91 Octane, unleaded
Fuel tank capacity, gallons: 5.0
Reserve, gallons: app. 1
Estimated fuel economy, mpg: 31-37
Estimated range, miles: 155-185
Recommended max cruising speed, mph: 70
Max permissible weight, lbs:1325
Trunk volume, cubic ft.: 2.9
Warranty
2-years parts and labor unlimited mileage.
*MRSP Excludes tax, license, registration, delivery, set-up, and dealer-installed options. Bike may be shown with additional options. Dealer prices may vary. Due to regulations in California, additional cost may apply to bikes purchased in California.*
